RAYMI31001MSF3 | RAYTEK RAYMI3 | CẢM BIẾN NHIỆT ĐỘ | Raytek Việt Nam
RAYMI31001MSF3
Raytek Vietnam | Greentech Vietnam
12 tháng
.
| MI3 1M, 2M Series | |
| STANDARD MI3 HIGH TEMPERATURE SENSING HEADS: 1M AND 2M SENSING HEADS ARE RATED FOR A MAXIMUM AMBIENT TEMPERATURE OF 120°C (<250°F) | |
| RAYMI31001MSF1 | 500 to 1,800°C (932 to 3,272°F), 1 µm, 100:1 D:S, 200mm Focus, 10 msec, 1m cable |
| RAYMI31001MSF3 | 500 to 1,800°C (932 to 3,272°F), 1 µm, 100:1 D:S, 2,200mm Focus, 10 msec, 1m cable |
| RAYMI31002MSF1 | 250 to 1,400°C (482 to 2,552°F), 1.6 µm, 100:1 D:S, 200mm Focus, 10 msec, 1m cable |
| RAYMI31002MSF3 | 250 to 1,400°C (482 to 2,552°F), 1.6 µm, 100:1 D:S, 2,200mm Focus, 10 msec, 1m cable |
| 1M and 2M sensing heads are rated for a maximum ambient temperature of 120°C (<250°F) | |
| SYSTEM EXPANSION ACCESSORIES | |
| XXXMI3CONNBOX | Multi-channel sensor interface box for MI3 and MI3M series communications modules. Includes 8 sets of field wiring terminals wired in parallel to one 5 meter (16.4') cable to connect to MI3 or MI3M communications module. |
| XXXUSBCABLE | USB cable assembly, 4 COND, USB-A(M), USB-MINI-B(M), Shielded, 2M |
| XXXUSB485 | USB to RS232/422/485 converter |
| XXXSYSPS | 24VDC power supply (100/240),1.3 amps |
| MECHANICAL ACCESSORIES | |
| XXXMI3100MN | Stainless steel mounting nuts (2) -metric threads |
| XXXMI3100FB | Stainless Steel Fixed Bracket |
| XXXMI3100ADJB | Stainless Steel Adjustable Bracket |
| XXXMI3100AP | Metric Air Purge Collar |
| XXXMI3100RAM | Right Angle Mirror, metric thread |
| MI3 SERIES COMMUNICATIONS BOXES | |

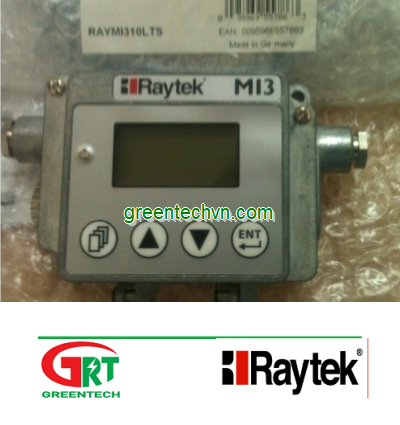

| RAYMI3COMM | MI3 series IR thermometer I/O box with USB 2.0 communications. Select the type of standard sensing heads listed above. |
| RAYMI3COMMI | MI3 series IR thermometer I/O box with USB 2.0 communications and sensing head installed. Select the type of standard sensing heads listed above and order as a separate line item. |
| RAYMI3COMM4 | MI3 series IR thermometer I/O box with USB 2.0 and RS485communications. Select the type of standard sensing heads listed above. For use over long distance or multi-drop networks and requires use of Smart RS485 converter. |
| RAYMI3COMMM | MI3 series IR thermometer I/O box with USB 2.0 and Modbus network communications interface. Select the type of standard sensing heads listed above. |
| RAYMI3COMME | MI3 series IR thermometer I/O box with USB 2.0 and Ethernet network communications interface with installed M12 fieldbus connector and built-in HTTP-Server server . Select the type of standard sensing heads listed above. |
| RAYMI3COMMP2 | MI3 series IR thermometer I/O box with USB 2.0 and Profibus network communications interface with installed 9 pin D-sub fieldbus connector. Select the type of standard sensing heads listed above. |
| RAYMI3COMMP1 | MI3 series IR thermometer I/O box with USB 2.0 and Profibus network communications interface with installed M12 fieldbus connector. Select the type of standard sensing heads listed above. |
| RAYMI3COMMPN | MI3 series IR thermometer I/O box with USB 2.0 and Profinet network communications interface with installed M12 fieldbus connector. Select the type of standard sensing heads listed above. |
| MI3M SERIES MULTICHANNEL DIN MOUNT COMMUNICATIONS BOXES | |
| RAYMI3MCOMMN | Modular 3TE DIN mountable 4-channel IR thermometer system with USB 2.0 communications (no user interface or display). Select the type and quantity (maximum of 4) of standard sensing heads listed above. |
| RAYMI3MCOMM | Modular 4TE DIN mountable 4-channel IR thermometer system with USB 2.0 and RS485 communications. Select the type and quantity (maximum of 4) of standard sensing heads listed above. |
| RAYMI3MCOMMA | Modular 6TE DIN mountable 4-channel IR thermometer system with USB 2.0 and 4 galvanic isolated analog outputs. Select the type and quantity (maximum of 4) of standard sensing heads listed above. |
| RAYMI3MCOMMM | Modular 6TE DIN mountable 4-channel IR thermometer system with USB 2.0 and Modbus network communications. Select the type and quantity (maximum of 4) of standard sensing heads listed above. |
| RAYMI3MCOMME | Modular 6TE DIN mountable 4-channel IR thermometer system with USB 2.0 and Ethernet interface with built-in HTTP-Server. Select the type and quantity (maximum of 4) of standard sensing heads listed above. |
| RAYMI3MCOMMP | Modular 6TE DIN mountable 4-channel IR thermometer system with USB 2.0 and Profibus network communications. Select the type and quantity (maximum of 4) of standard sensing heads listed above. |
| RAYMI3MCOMMPN | Modular 6TE DIN mountable 4-channel IR thermometer system with USB 2.0 and Profinet interface. Select the type and quantity (maximum of 4) of standard sensing heads listed above. |
| XXXETHLTCB | 7.5m Ethernet Cable (CAT5, 70°C) with M12 plug to connect RAYMI3COMME |
| GPS Series Sensing Heads | |
| Raytek RAYGPSSFL Standard Focus Infrared Temperature Sensor with Laser Sighting, 50:1 Optics | |
| Raytek RAYGPSCFL Infrared Temperature Sensor, Close Focus, 35:1 | |
| XXXGPSCERT | Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST, certified w/ GPC display monitor (must be ordered as a separate line item) |
| ACCESSORIES | |
| XXXGPSCB4 | Spare GPS Sensor Cable - 4 meter length |
| XXXTXXACAP | Air purge collar |
| XXXTXXACCA | Conduit adapter |
| XXXTXXACPA | Pipe thread adaptor (Sighting Tubes listed below can be attached to this) |
| XXXTXXACMN | Mounting nut (spare) |
| XXXTXXACFB | Fixed bracket (spare) |
| XXXTXXACAB | Adjustable bracket (spare) |
| XXXTXXACSB | Swivel bracket |
| XXXTXXACSV | Sighting viewer setup tool (for GPR & TX ) |
| XXXTXXACRA | Right angle mirror (for targets at right angles to sensor axis) |
| XXXTSTC12 | 30 cm (12") sighting tube, ceramic (up to 1500°C) |
| XXXTST12 | 30 cm (12") sighting tube, stainless steel (up to 800°C) |
| XXXTXXACAFA | Adjustable Furnace Wall Mounting Assembly |
| XXXTXXACFA | Wall Mount Flange Assembly |
| 98982-1 | Replacment Laser Switch Box For GPS Sensor |
| FLOW REGULATORS: FOR USE WITH COOLING/PURGING OPTIONS AND ACCESSORIES | |
| XXXTXXWR | Water flow regulator (water cooling) |
| XXXTXXAR | Air purging flow regulator assembly with air filter |
| XXXTXXCAFR | Cooling air flow regulator (high capacity) |
| GPC Series Monitor | |
| RAYGPC | GPC panel-mount meter with standard 5 VDC alarm outputs |
| RAYGPCM | GPC panel-mount meter with 3 A mechanical alarm outputs |
| GPC MONITOR ACCESSORIES | |
| XXXGPSSRAC | 10 A/ 24 - 330 VAC Solid State Relay for use with 5Vdc alarm outputs from GPC monitor only |
