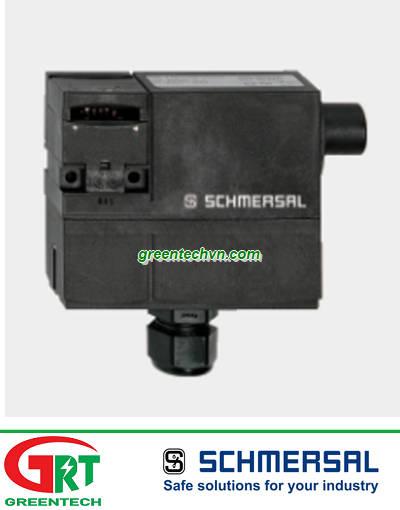

AZM 170SK-11/02ZK-2197 24VAC/DC | Schmersal AZM 170SK-11/02ZK-2197 24VAC/DC | Schmersal Việt Nam

(0 đánh giá)

AZM 170SK-11/02ZK-21

Schmersal Vietnam | Greentech Vietnam

12 tháng

AZM 170SK-11/02ZK-2197 24VAC/DC | Schmersal AZM 170SK-11/02ZK-2197 24VAC/DC | Schmersal Việt Nam

Ordering data
Product type description
AZM 170SK-11/02ZRK-2197 24VAC/DC
Article number (order number)
101183249
EAN (European Article Number)
4030661319049
eCl@ss number, Version 9.0
27-27-26-03
Approval - Standards
Certificates
cULus
CCC
EAC
General data
Product name
AZM 170
Standards
EN 60947-5-1
BG-GS-ET-19
Coding level according to ISO 14119
Low
Active principle
electromechanical
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Material of the contacts, electrical
Silver
Gross weight
320 g
General data - Features
Power to unlock
Yes
Manual release
Yes
Number of actuating directions
2
Number of auxiliary contacts
1
Number of safety contacts
3
Safety appraisal
Standards
ISO 13849-1
Mission Time
20 Year(s)
Safety appraisal - Safety outputs
B10d Normally-closed contact (NC)
2,000,000 Operations
Mechanical data
Mechanical life, minimum
1,000,000 Operations
Clamping force in accordance with ISO14119 Fzh
1,000 N
Latching force
30 N
positive break travel
11 mm
Positive break force, minimum
17 N
Actuating speed, maximum
2 m/s
Mechanical data - Connection technique
Terminal Connector
Screw terminals
Cable section, minimum
1 x 0.25 mm²
Cable section, maximum
1 x 1.5 mm², flexible
Mechanical data - Dimensions
Height of sensor
100.5 mm
Length of sensor
30 mm
Ambient conditions
Protection class
IP 67 to IEC/EN 60529
Ambient temperature, minimum
-25 °C
Ambient temperature, maximum
+60 °C
Ambient conditions - Insulation value
Rated impulse withstand voltage
4 kV
Electrical data
Thermal test current
6 A
Rated control voltage
24 VAC/DC
Required rated short-circuit current to EN 60947-5-1
1,000 A
Electrical power consumption, maximum
10 W
Switching element
NO contact, NC contact
Note (Switching element)
Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
Switching principle
Creep circuit element
Switching frequency
1,000 /h
Electrical data - Safety contacts
Voltage, Utilisation category DC13
24 VDC
Current, Utilisation category DC13
4 A
Electrical data - Auxiliary contacts
Voltage, Utilisation category DC13
24 VDC
Current, Utilisation category DC13
4 A
Other data
Note (applications)
sliding safety guard
removable guard
hinged safety guard
Scope of delivery
Included in delivery
Actuators must be ordered separately.
Notes
Note (General)
Individual coding available on request
Note (Manual release)
right
For manual release using M5 triangular key, available as accessory
Additional manual release on side

K.A. Schmersal GmbH & Co. KG, Möddinghofe 3, D-42279 Wuppertal
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
Generated on 26/02/2021 11:21:16
